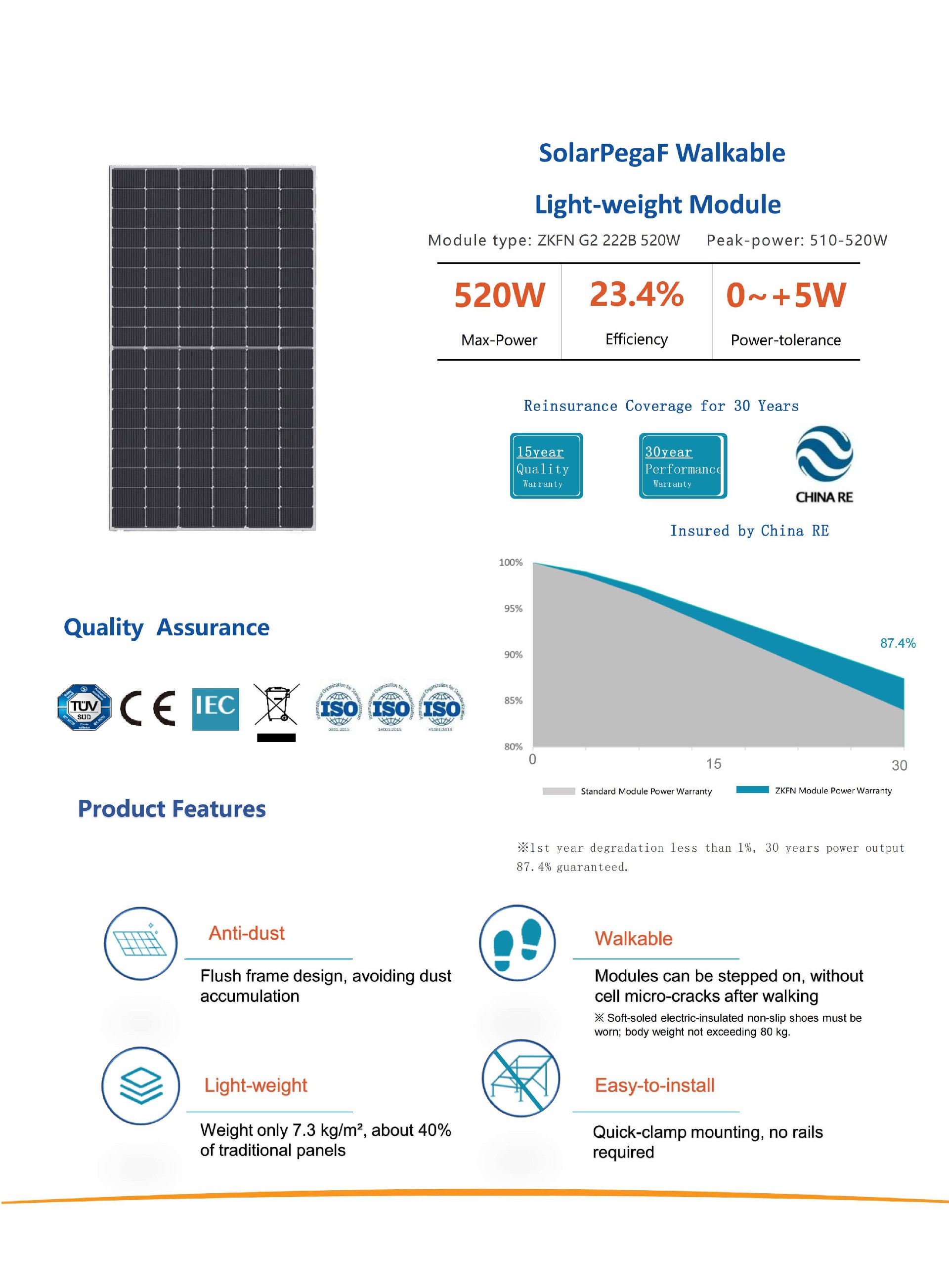

Product features

The power range is 510-520W, Topcon battery, conversion efficiency 23.4%, power tolerance 0~+5W.

Core advantages

1. Lightweight design

The unit weight is 7.3kg/㎡, which is 40% lighter than traditional components. It is suitable for roofs with limited load and reduces the roof load-bearing burden.
The frame is made of high-strength fiberglass resin composite material.

2. Practical structure and convenient construction

• Bracket-free: Supports installation with adhesive or Quick‑clamp clamps, eliminating the need for traditional brackets, simplifying roof construction.

• Flush frame prevents dust accumulation on all sides, reducing the impact of dust accumulation on power generation.

• Anti-trampling performance: Wearing soft-soled insulated shoes can trample for maintenance. The battery cells are not prone to cracks after trampling (applicable weight ≤80kg).

3. Reliable mechanical and electrical performance

The maximum system voltage is DC1500V; the operating temperature is ‑40℃~+85℃; the front static load is 3600Pa and the back is 2400Pa;
it has passed the 25mm hail impact test and can adapt to complex outdoor working conditions.

IP68 junction box, MC4 compatible connector, and cables can be customized on demand.

4. Extra long warranty insurance

15-year product quality warranty, 30-year power warranty; first-year attenuation less than 1%, 30-year output power not less than 87.4%;
underwritten by China Continent Property Insurance, with a full set of authoritative certifications such as TUV, CE, IEC, and ISO.

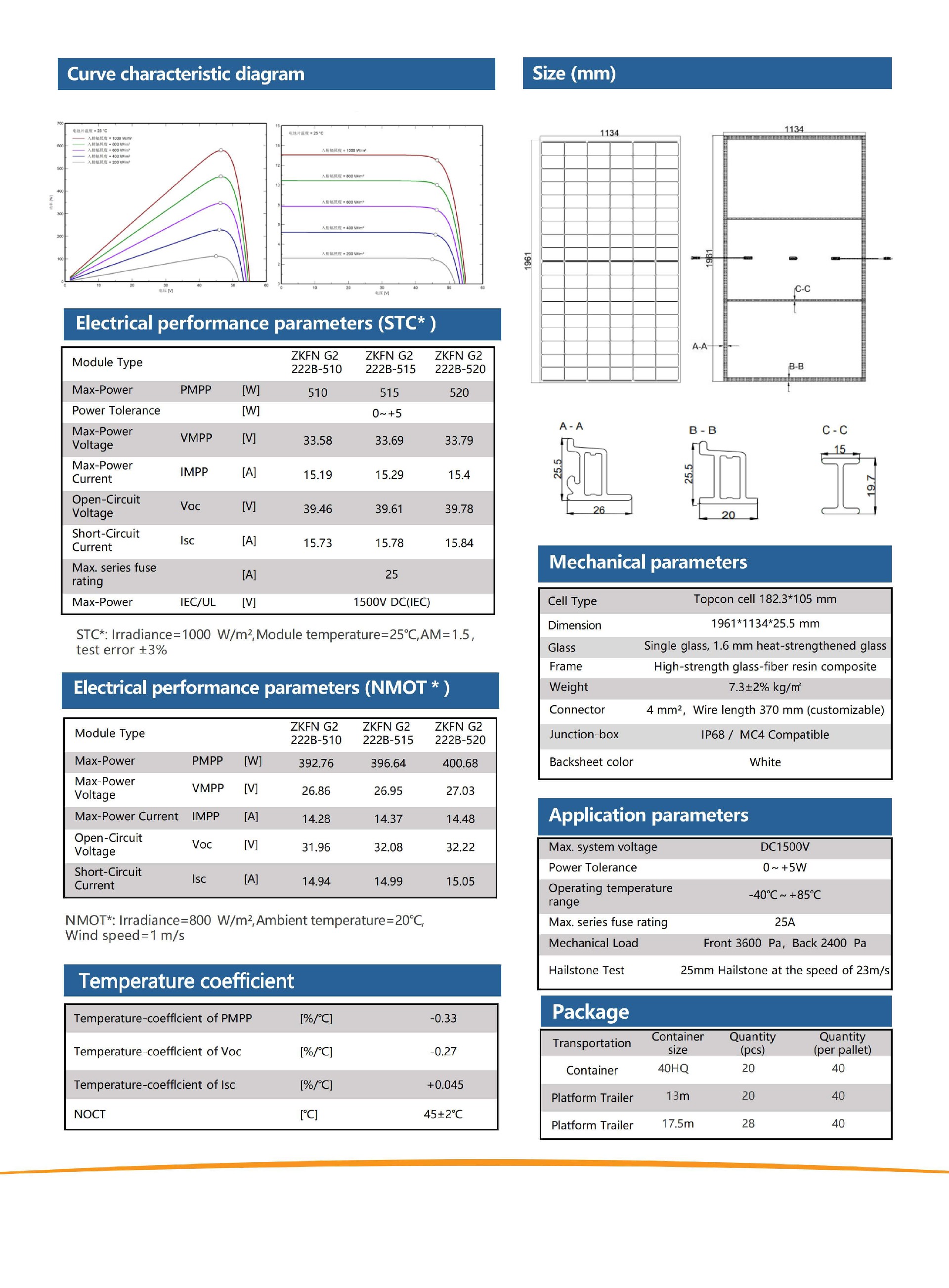

Basic parameters

Component size is 1961×1134mm; 1.6mm coated semi-tempered glass; can be transported in large quantities by container or flatbed trailer.
